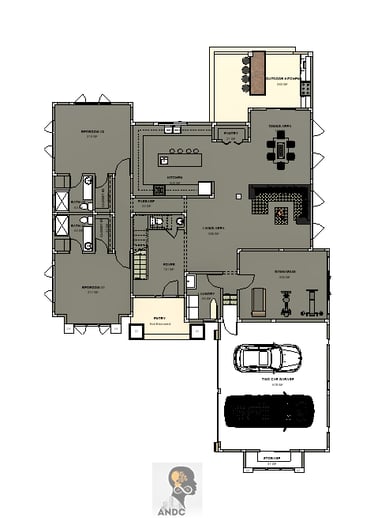

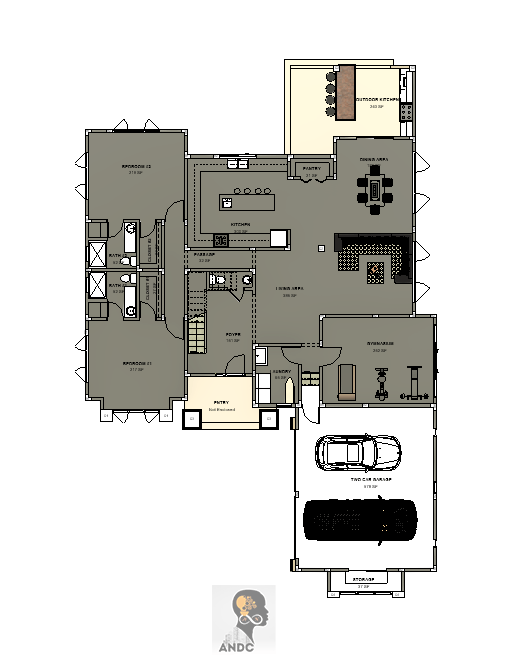

GROUND FLOOR PLAN

WOODCREST

5385 sq. ft. Total Living | 5 Bedrooms | 4 Full Baths | 1 Half Bath

___________________________________________________

$376,950 JMD

HOUSE PLAN FEATURES

Adaptability: Single Family Dwelling

Suitable Land Type: Flat

Oversized Living Area

Double Car Garage

Gym

Outdoor Kitchen

His & Hers Closets

Walk-in Pantry

HOUSE PLAN SPECIFICATIONS

• Ground Floor:  3243 sq. ft.

• First Floor:  2142 sq. ft.

• Bedrooms:  5

• Bathrooms:  4

• Half Baths:  1

• Width of House:  61 ft. 4 in. (to roof eaves)

• Depth of House:  90 ft. 10 in. (to roof eaves)

• Foundation:  Concrete strip and isolated concrete footing

• Exterior Wall:  Block

• Exterior Finish:  Trowel on / Mortar render

• Stories:  2

• Roof Type:  Timber (Wood frame) - Hip and gable

• Garage Bays:  2

• Garage:  578 sq. ft.

• Total Area:  5385 sq. ft.

• Building Height from Ground Floor Level:  27 ft. 6 in.

DESCRIPTION

Woodcrest was designed for modern living suited for large families and entertaining guests. it possesses a strong Mediterranean influence with large windows for a tropical blend ensuring adequate ventilation and natural lighting. If you want to come home and unwind after a long day, then this is the way to go.

WHAT IS IN A SET OF PLANS?

Find out what we include in a set of house plans

PURCHASING

Wish to purchase a set of drawings for this house? Fill out the form below and attach your surveyor's report and property title for review to begin the process.

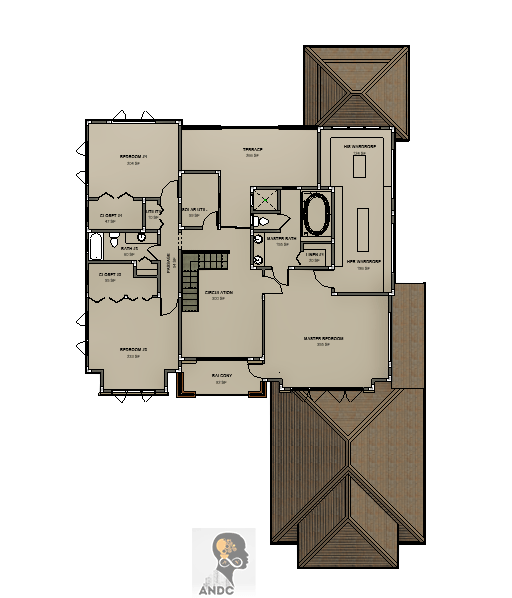

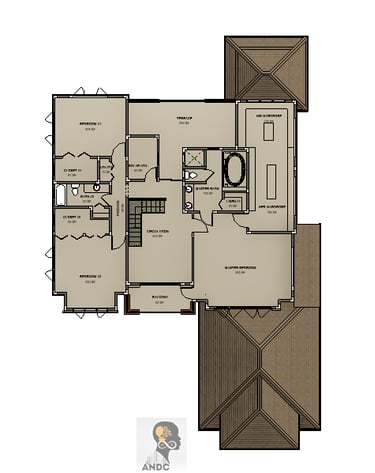

FIRST FLOOR PLAN

DRAWING PACKAGE PURCHASE PROCESS

1. Select drawing; provide your full name, email address, name of house, attach a copy of surveyor's report and title in form provided on the drawing's page for compatibility check. We need to ensure that your land can accommodate the home that will be constructed from the selected drawing package BEFORE purchase.

2. Once compatible, an email will be sent to you providing payment options.

3. Once payment is complete, allow up to ten (10) working days for the necessary site plan and maps for your property to be produced along with the insertion of your name and property information on all drawing sheets.

4. Upon completion a PDF of the drawing package will be sent to your email.

5. Art Nuvoe Designs & Construction is committed to ensuring that your drawing meets ALL technical standards set out by the respective municipal corporations across Jamaica thus ensuring approval. Any additional modifications required upon or after submission is the obligation of Art Nuvoe Designs & Construction.
