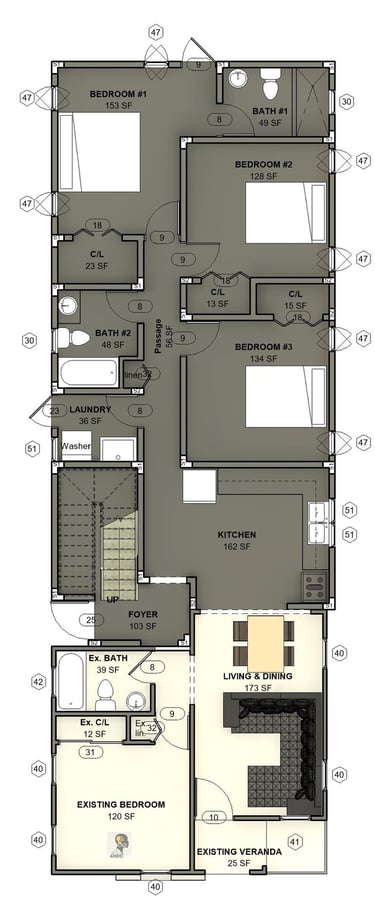

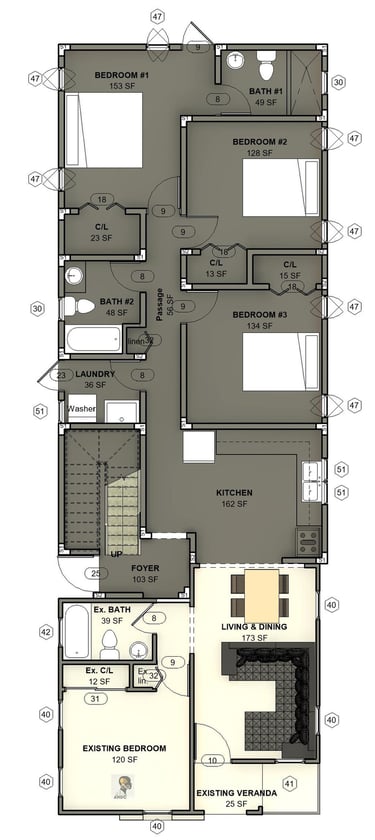

GROUND FLOOR PLAN

SIERRA

2060 sq. ft. Total Living | 5 Bedrooms | 4 Full Baths

___________________________________________________

$145,060 JMD

HOUSE PLAN FEATURES

Adaptability: Apartments / Single Family Dwelling

Suitable Land Type: Flat

Total living area - 2490 sq.ft. (Including original unit)

2026 sq.ft. added to original unit

2 Ensuite bedrooms

Large kitchen added

HOUSE PLAN SPECIFICATIONS

• Ground Floor:  1059 sq. ft.

• First Floor:  1001 sq. ft.

• Bedrooms:  5 (Added)

• Bathrooms:  4 (Added)

• Width of House:  29 ft. 8 in. (Added)

• Depth of House:  24 ft. 6 in. (Added)

• Foundation:  Concrete strip and isolated concrete footing

• Exterior Wall:  Block

• Exterior Finish:  Trowel on / Mortar render, WPC

• Stories:  2

• Roof Type: Reinforced concrete slab

• Total Area Added:  2060 sq. ft.

• Building Height from Ground Floor Level:  27 ft. 3 in.

DESCRIPTION

The proposed building is an addition to a single dwelling residential unit in Estuary. Building can accommodate two self contained units if covenant is amended to accommodate it. This design features minimalist aesthetics with emphasis on clean lines. The proposal offers more personal accommodations while satisfying client spacial requirements.

WHAT IS IN A SET OF PLANS?

Find out what we include in a set of house plans

PURCHASING

Wish to purchase a set of drawings for this house? Fill out the form below and attach your surveyor's report and property title for review to begin the process.

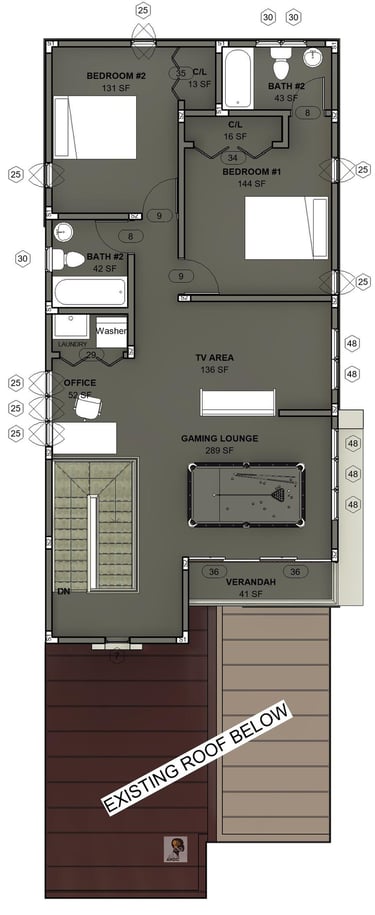

FIRST FLOOR PLAN

DRAWING PACKAGE PURCHASE PROCESS

1. Select drawing; provide your full name, email address, name of house, attach a copy of surveyor's report and title in form provided on the drawing's page for compatibility check. We need to ensure that your land can accommodate the home that will be constructed from the selected drawing package BEFORE purchase.

2. Once compatible, an email will be sent to you providing payment options.

3. Once payment is complete, allow up to ten (10) working days for the necessary site plan and maps for your property to be produced along with the insertion of your name and property information on all drawing sheets.

4. Upon completion a PDF of the drawing package will be sent to your email.

5. Art Nuvoe Designs & Construction is committed to ensuring that your drawing meets ALL technical standards set out by the respective municipal corporations across Jamaica thus ensuring approval. Any additional modifications required upon or after submission is the obligation of Art Nuvoe Designs & Construction.
