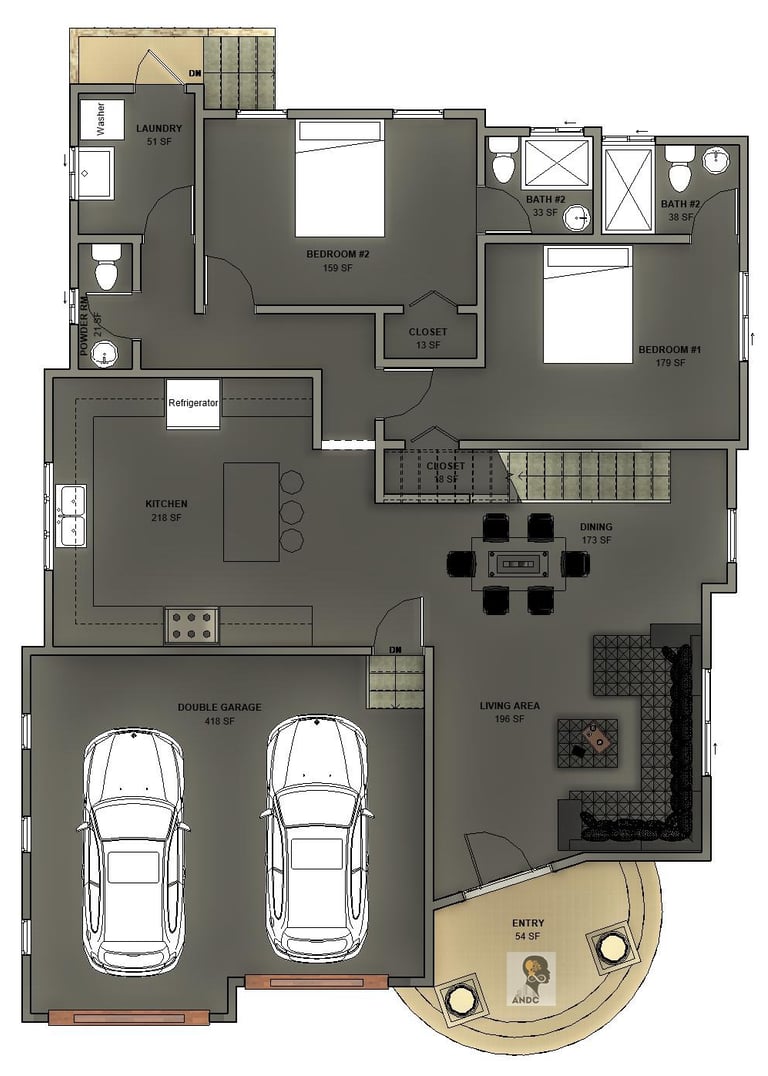

GROUND FLOOR PLAN

JAMAICAN CONTEMPORARY

2805 sq. ft. Total Living | 5 Bedrooms | 5 Full Baths | 2 Half Baths

___________________________________________________

$196,350

HOUSE PLAN FEATURES

Adaptability: Single Family Dwelling

Suitable Land Type: Flat

Master Suite Wing on Upper Floor

Double Car Garage

Upper Floor Terrace

Large Kitchen

His & Hers Closets

All Bedrooms are Ensuite

HOUSE PLAN SPECIFICATIONS

• Ground Floor:  1517 sq. ft.

• First Floor:  1288 sq. ft.

• Bedrooms:  5

• Bathrooms:  5

• Half Baths:  2

• Width of House:  40 ft. 7 in.

• Depth of House: 52 ft. 5 in.

• Foundation:  Concrete strip and isolated concrete footing

• Exterior Wall:  Block

• Exterior Finish:  Trowel on / Mortar render, Tiling

• Stories:  2

• Roof Type:  Reinforced concrete slab

• Garage Bays:  2

• Garage:  418 sq. ft.

• Total Area:  2805 sq. ft.

• Building Height from Ground Floor Level:  23 ft. 0 in.

DESCRIPTION

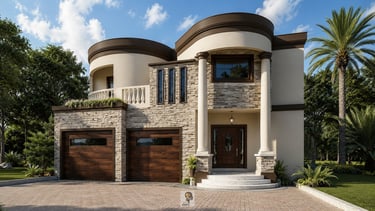

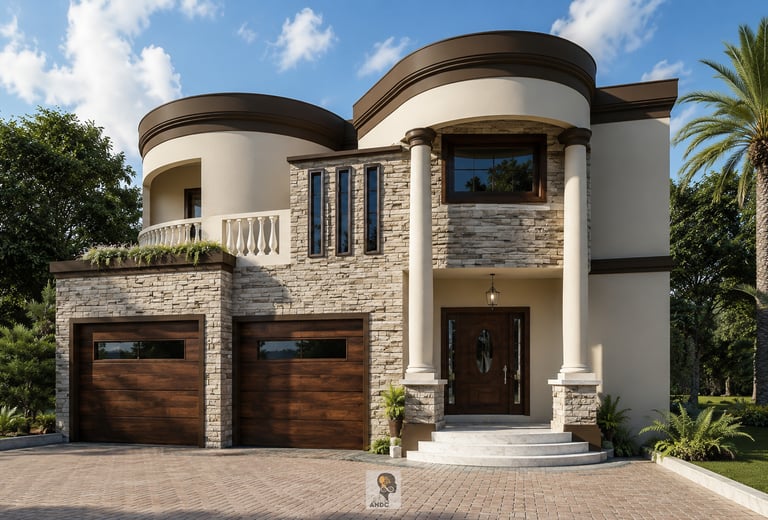

Jamaican Contemporary is exactly as the name suggests, an ode to one of Jamaica's marquee residential architectural styles but with contemporary elements. This stunner features the signature round shapes traditionally applied to countless Jamaican homes but with angular forms and stone finishes to give it that modern flavour. If you want this beautiful classic to be yours, you are in the right place.

WHAT IS IN A SET OF PLANS?

Find out what we include in a set of house plans

PURCHASING

Wish to purchase a set of drawings for this house? Fill out the form below and attach your surveyor's report and property title for review to begin the process.

FIRST FLOOR PLAN

DRAWING PACKAGE PURCHASE PROCESS

1. Select drawing; provide your full name, email address, name of house, attach a copy of surveyor's report and title in form provided on the drawing's page for compatibility check. We need to ensure that your land can accommodate the home that will be constructed from the selected drawing package BEFORE purchase.

2. Once compatible, an email will be sent to you providing payment options.

3. Once payment is complete, allow up to ten (10) working days for the necessary site plan and maps for your property to be produced along with the insertion of your name and property information on all drawing sheets.

4. Upon completion a PDF of the drawing package will be sent to your email.

5. Art Nuvoe Designs & Construction is committed to ensuring that your drawing meets ALL technical standards set out by the respective municipal corporations across Jamaica thus ensuring approval. Any additional modifications required upon or after submission is the obligation of Art Nuvoe Designs & Construction.
