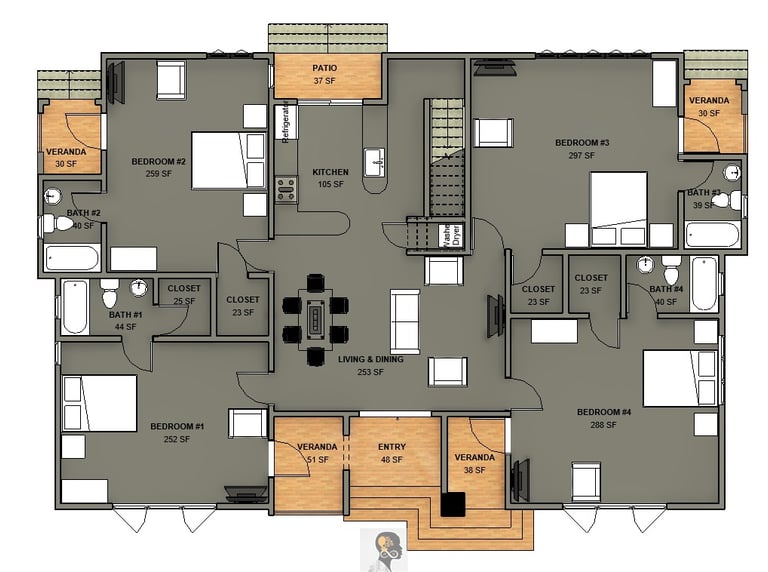

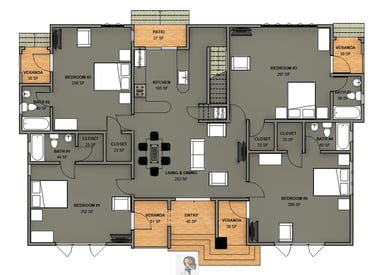

GROUND FLOOR PLAN

ALPINE

4769 sq. ft. Total Living | 8 Bedrooms | 8 Full Baths

___________________________________________________

$376,950 JMD

HOUSE PLAN FEATURES

Adaptability: Apartments / Single Family Dwelling

Suitable Land Type: Flat

All bedrooms are ensuite

Large bedrooms

Compact design

HOUSE PLAN SPECIFICATIONS

• Ground Floor:  2329 sq. ft.

• First Floor:  2440 sq. ft.

• Bedrooms:  8

• Bathrooms:  8

• Width of House:  64 ft. 10 in. (to roof eaves)

• Depth of House: 52 ft. 5 in. (to roof eaves)

• Foundation:  Concrete strip and isolated concrete footing

• Exterior Wall:  Block

• Exterior Finish:  Trowel on / Mortar render

  Stories:  2

• Roof Type:  Reinforced concrete slab

• Garage Bays:  2

• Total Area:  4769

• Building Height from Ground Floor Level:  24 ft. 6 in.

DESCRIPTION

Alpine was designed to be adaptable and have dual capabilities. It can be an apartment with four studios and (2) two bedroom units or a spacious single family residence. Alpine features a contemporary design and is extremely minimal in its appearance.

Apartment version is readily available.

If you need to build an income generator fast or your brand new home, then this could be for you.

WHAT IS IN A SET OF PLANS?

Find out what we include in a set of house plans

PURCHASING

Wish to purchase a set of drawings for this house? Fill out the form below and attach your surveyor's report and property title for review to begin the process.

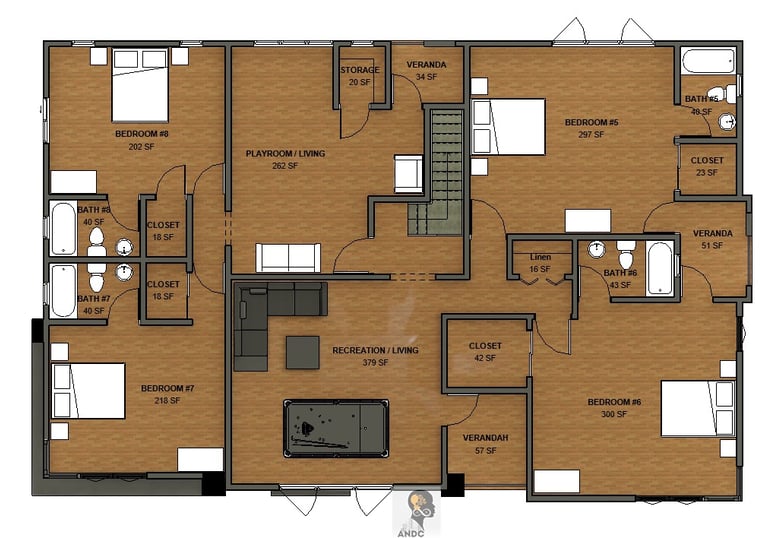

FIRST FLOOR PLAN

DRAWING PACKAGE PURCHASE PROCESS

1. Select drawing; provide your full name, email address, name of house, attach a copy of surveyor's report and title in form provided on the drawing's page for compatibility check. We need to ensure that your land can accommodate the home that will be constructed from the selected drawing package BEFORE purchase.

2. Once compatible, an email will be sent to you providing payment options.

3. Once payment is complete, allow up to ten (10) working days for the necessary site plan and maps for your property to be produced along with the insertion of your name and property information on all drawing sheets.

4. Upon completion a PDF of the drawing package will be sent to your email.

5. Art Nuvoe Designs & Construction is committed to ensuring that your drawing meets ALL technical standards set out by the respective municipal corporations across Jamaica thus ensuring approval. Any additional modifications required upon or after submission is the obligation of Art Nuvoe Designs & Construction.
